1.Single side normal anti-static PSA cover tape.
2.Double side high anti-static PSA cover tape.
3.Process Introduction for Cover Tape
4.How to use PSA cover tape, what fact peeling strength for SMT?
5.The standard of peeling Strength at EIA Standard-D.
6.How much Peeling Strength (pulling force) can fit you?
=======================

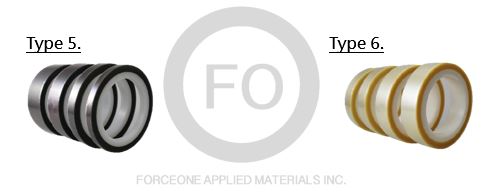

Single side normal anti-static PSA cover tape (Normal Type)
EX: PSA-1632(Brown)、PSA-1832(Yellow) 、PSA-1866(White)
Width: 5.4mm, 9.3mm, 13.3mm, 21.3mm, 25.5mm, 37.5mm, 49.5mm, 65.5mm, 81.5mm
The Benefits of Force-One's Cover Tape：

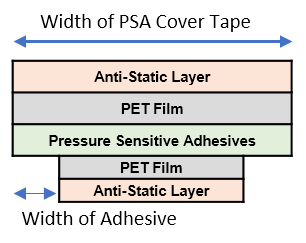

1.PET with Pressure Sensitive Adhesives combined with brown or Transparent anti-static film.
2.Excellent and stable quality . The aging (60℃ / 720hrs) and peeling force test had passed.
3.The value of anti-static is 10^9~11, It can prevent ESD issue.
4.Excellent sealing. Can meet any carrier tape of PC, PS, PET to seal.
5.Thickness: 60 ± 5 um. Can anti high temperatures before vacuum packaging ( 80℃) without peeling issue.
6.Complies with EIA-481 standards

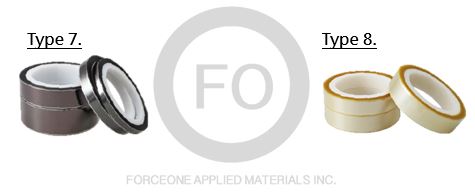

Anti-static PSA Cover Tape(Heat-Resisting Type)
EX: PSA-2566(Brown)
Width: 5.4mm, 9.3mm, 13.3mm, 21.3mm, 25.5mm, 37.5mm, 49.5mm, 65.5mm, 81.5mm
Force-One's PSA-2566 is high anti-static, the function is better than 3M Pressure Sensitive Cover Tape 2668 and 2698. 3M 2668 and 2698 just have single side and high anti-static. Force-One PSA-2566 has double side and high anti-static. It can protect IC, WLCSP, LEDs and ultra-small and lightweight packages to anti Electrostatic discharge (ESD). Force-One PSA-2566 also has good and stable peeling strengh to aviod the components jumping issue.
The Benefits of Force-One's Cover Tape：
1.PET with Pressure Sensitive Adhesives combined with brown or Transparent anti-static film.
2.Excellent and stable quality. The aging **(120℃ / 720hrs)** and peeling force test had passed.
3.The value of anti-static is 10^9~10^11, Adhesive is 10^8~10 It can prevent ESD issue.
4.Excellent sealing. Can meet any carrier tape of PC, PS, PET to seal.
5.Thickness: 60 ± 5 um. Can anti high temperatures before vacuum packaging (120℃) without peeling issue.
6.Complies with EIA-481 standards
Force-One produce many kind of PSA cover tape. Our PSA cover tapes have very stable peeling strength for PS or PC carrier tape. Our PSA cover tapes have good anti-static function. We can help the
Want to know more, Welcome to Contact us
Read About "Heat Seal Cover Tape"
===Process Introduction for Cover Tape===
>Coating Line:
>Cutting Line:
===The Introduction of Force-One's Cover Tape===

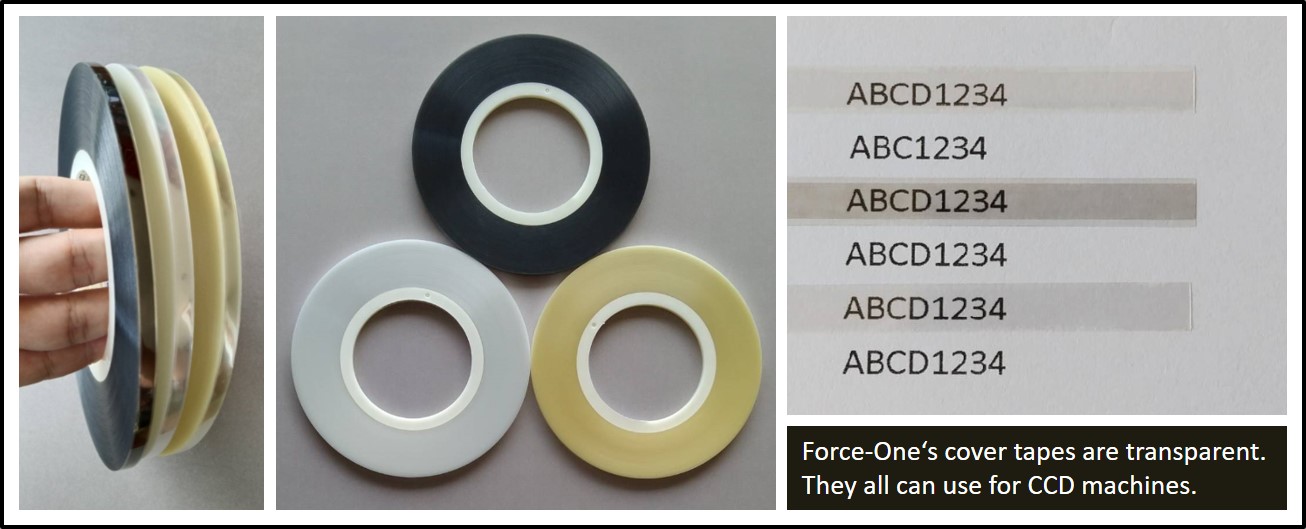

Force-One's is uniquely designed to peel through the film itself and available as static dissipative.The cover tapes for semiconductor(IC) or Passive components seal electrical and electronic components into Carrier Tapes, it have anti-static layers can anti-static(ESD) during packing, transport and storage. The cover tapes for semiconductor could combine excellent sealing properties with smooth peel force to protect IC or Passive components and permit efficient pick-and-place operations. The full line of Force-One's Cover Tapes includes conductive, non-conductive and static dissipative products with heat activated or pressure-sensitive adhesive.
Both PSA and HAA cover tapes can be found in non-conductive and static-dissipative versions. Some cover tapes are termed anti-static which are usually perceived as being the same as static-dissipative cover tapes. Technically, anti-static refers to a material which does not generate a static charge when rubbed against a second material (triboelectric charging). Static dissipative refers to a material which can bleed off a charge through the mechanism which provides it’s surface resistivity. A non-conductive material is defined as having a surface resistivity (Rs) greater than 10^12 ohms/square. Static dissipative material is defined as having a surface resistivity (Rs) between 10^5 ohms/square and 10^12 ohms/square. While conductive material is defined as having a surface resistivity (Rs) of less than 10^5 ohms/square.
The cover tapes(Tape & Reel) for semiconductor(IC) or Passive components is good for SMD/SMT(Surface-Mount Device / Surface-Mount Technology) process. And can anti-static cover tape for packaging of surface mount devices (ESD protection).
Common trS: Thin:0.05~0.06 mm ; Transmittance: 60%~89% ; Haze: 3%~30% ; Anti-static: ≦10^9-11Ω/sq ; Working temperature:140℃ - 190℃ ; RA pass:55℃~60℃/720 hrs
Width: 5.4mm, 9.3mm, 13.3mm, 21.3mm, 25.5mm, 37.5mm, 49.5mm, 65.5mm, 81.5mm
◆Heat Activated (HAA)
1. Normal Type
2. Transparent Type
3. Conductive Type
Read More About "Heat Activated Cover Tape"◆Pressure Sensitive Adhesives Sensitive (PSAs)
1. Normal Type
2. Conductive Type
3. Heat-Resisting Type
Read More About "PSA Cover Tape"Want to know more, Welcome to Contact us
*****Sealing Heat Activated Cover Tape*****
For any heat-activated adhesive cover tape, as a general rule,increasing temperature, dwell time, and pressure on a given sealing machine will, within limits, increase adhesion (peel). However, for most of the HAA cover tapes available in the marketplace today, temperature and dwell will have a greater affect on adhesion than pressure. The ways these variables interact in the sealing process are of interest to anyone trying to control a packaging process.
>Normal Type Cover Tape
Similar as Common trS
>Transparent Type Cover Tape
Special trS: Transmittance: 89%
>Conductive Type Cover Tape
Special trS: PET's anti-static: ≦10^5-10Ω/sq ; Adhesive anti-static: ≦10^9Ω/sq
*****Pressure Sensitive Adhesives PSA Cover Tape*****
PSA cover tapes require different processing and handling than heat activated cover tapes and are generally considered to be easier to seal than their heat activated counterparts. The PSA adhesive is a synthetic adhesive formulated to remain tacky over a wide range of temperatures, including room temperature. Hence, PSA cover tapes don't heat to seal them with carrier tape. To prevent components from sticking to the adhesive, a liner film is added to cover the adhesive in the center portion of the cover tape. PSA cover tapes are slightly more complex in their cons.
>Normal Type-Cover Tape
Similar as Common trS
>Conductive Type Cover Tape
Special trS: Adhesive anti-static:≦10^3-5Ω/sq
>Heat-Resisting Type Cover Tape
Special trS: Can Heat-Resisting: 125℃/8hr or 50℃/24hr
Want to know more, Welcome to Contact us
How to use PSA cover tape for SMT?
Cover tape of PSA is produced by PET with pressure sensitive adhesives.After combine with PET and PSA, it still need to cut the width of adhesive. The width of adhesive will decide how much the peeling strength and the stability of peeling strength.
And you need to check the parameter of your SMD packaging machine
1.Sealing Pressure
2.Sealing Speed
3.Peeling Speed
What kind size of cover tape need go with difference width carrier tape like 8 mm, 12 mm, 16 mm, and 24 mm...?
1. Carrier Tape of 8 mm has to be used with Cover tape of 5.4mm.
2. Carrier Tape of 12 mm has to be used with Cover tape of 9.3mm.
3. Carrier Tape of 16 mm has to be used with Cover tape of 13.3mm.
4. Carrier Tape of 24 mm has to be used with Cover tape of 21.3mm.
5. Carrier Tape of 32 mm has to be used with Cover tape of 25.5mm.
6. Carrier Tape of 44 mm has to be used with Cover tape of 37.5mm.
7. Carrier Tape of 56 mm has to be used with Cover tape of 49.5mm.
8. Carrier Tape of 72 mm has to be used with Cover tape of 65.5mm.
9. Carrier Tape of 88 mm has to be used with Cover tape of 81.3mm.
What do you need to check? when you decide to use PSA cover tape to package:
1. How much the width of tape
2. How much the width of adhesive
3. How much peeling strength you need?
4.How much length per roll of cover tape you need?
5. Do you need anti-static? single side or double side?
6. How much resistivity for anti-static you need?
What about the peeling strength?
=>Cover tape side:
1. What kind the adhesive of cover tape.
2. The width of adhesive
3. What kind of carrier tape(PC or PS)
=>Sealing Machine
1. Sealing Pressure
2. Sealing Time
3. Peeling Speed
The standard of peeling Strength at EIA Standard-D from EIA Standard-D
4.11 in EIA Standard-D:
The cover tape for each style and material of carrier tape shall have a total peel strength of from 0.1 N to 1.0 N (10 grams to 100 grams calibrated scale reading) for 8 mm carrier tapes and 0.1N to 1.3 N (10 grams to 130 grams calibrated scale reading) for 12 mm to 56 mm wide carrier tapes and from 0.1N to 1.5 N (10 grams to 150 grams calibrated scale reading) for 72 mm and wider carrier tapes. Peel is defined as the separation of the full width of the cover tape from the carrier tape or the removal of the center portion of the cover tape from the carrier tape to enable component removal from the cavity. The direction of pull shall be opposite the direction of carrier tape travel such that the cover tape makes an angle of between 165 and 180 degrees with the top of the carrier tape. The cover tape, shall be pulled with a velocity of 300 mm±10 mm/minute, relative to the carrier tape, during peeling, which results in the cover/carrier tape seal being separated at a rate of 150 mm/minute.
How much Peeling Strength (pulling force) can fit you? From EIA Standard-D
1. 0.1 N to 1.0 N (10 grams to 100 grams calibrated scale reading) for 8 mm carrier tapes.
2. 0.1 N to 1.3 N (10 grams to 130 grams calibrated scale reading) for 12 mm to 56 mm wide carrier tapes
3. 0.1N to 1.5 N (10 grams to 150 grams calibrated scale reading) for 72 mm and wider carrier tapes.
The pulling strength of our Heat-Seal, PSA cover tape is 20~90 gram, 40~130 gram, but it still difference pulling strength from difference carrier tape. We have stable pulling strength improve the component jump at SMD.
About Cover Tape
Cover tape still can call: tape and reel, tape reel, SMD package, semiconductor tape, reel to reel, SMD reels, reel to reel tape, tape and reel packaging, electric reel, tape & reel packaging , 2668 , 2698 , 2671A for semiconductor packaging, component packaging
Cover tape combine with carrier tape and use for package the semiconductor(IC) or Passive components seal electrical and electronic components, it have anti-static layers can anti-static(ESD) during packing, transport and storage. Both PSA and HAA cover tapes can be found in non-conductive and static-dissipative versions. Some cover tapes are termed anti-static which are usually perceived as being the same as static-dissipative cover tapes. Technically, anti-static refers to a material which does not generate a static charge when rubbed against a second material (triboelectric charging). Static dissipative refers to a material which can bleed off a charge through the mechanism which provides it’s surface resistivity.
When sealing an HAA cover tape, temperature refers to the indicated temperature of the sealing mechanism. Heat activated adhesives are dry to the touch at room temperature. The absence of any tackiness is the property that permits their ready handling under these conditions. Tackiness must be attained to get the adhesive to “stick” the cover tape to the carrier tape. To accomplish this, energy in the form of heat is used to “activate” the cover tape’s adhesive system. This activation is the process that raises the temperature of the adhesive until it achieves a level of tackiness which allows it to adhere to the carrier tape. But PSA cover tapes require different processing and handling than heat activated cover tapes and are generally considered to be easier to seal than their heat activated counterparts. The PSA adhesive is a synthetic adhesive formulated to remain tacky over a wide range of temperatures, including room temperature. Hence, PSA cover tapes require no heat to seal them to the carrier. To prevent components from sticking to the adhesive, a liner film is added to cover the adhesive in the center portion of the cover tape.
REFERENCES:FUNDAMENTALS OF PSA AND HEAT ACTIVATED COVER TAPE SEALING FOR COMPONENTS PACKAGED IN TAPE AND REEL
3M 2668 , 2698 , 2671A
===The Introduction of Force-One's Cover Tape===
Force-One's is uniquely designed to peel through the film itself and available as static dissipative.The cover tapes for semiconductor(IC) or Passive components seal electrical and electronic components into Carrier Tapes, it have anti-static layers can anti-static(ESD) during packing, transport and storage. The cover tapes for semiconductor could combine excellent sealing properties with smooth peel force to protect IC or Passive components and permit efficient pick-and-place operations. The full line of Force-One's Cover Tapes includes conductive, non-conductive and static dissipative products with heat activated or pressure-sensitive adhesive.
Both PSA and HAA cover tapes can be found in non-conductive and static-dissipative versions. Some cover tapes are termed anti-static which are usually perceived as being the same as static-dissipative cover tapes. Technically, anti-static refers to a material which does not generate a static charge when rubbed against a second material (triboelectric charging). Static dissipative refers to a material which can bleed off a charge through the mechanism which provides it’s surface resistivity. A non-conductive material is defined as having a surface resistivity (Rs) greater than 10^12 ohms/square. Static dissipative material is defined as having a surface resistivity (Rs) between 10^5 ohms/square and 10^12 ohms/square. While conductive material is defined as having a surface resistivity (Rs) of less than 10^5 ohms/square.
The cover tapes(Tape & Reel) for semiconductor(IC) or Passive components is good for SMD/SMT(Surface-Mount Device / Surface-Mount Technology) process. And can anti-static cover tape for packaging of surface mount devices (ESD protection).
Common trS: Thin:0.05~0.06 mm ; Transmittance: 60%~89% ; Haze: 3%~30% ; Anti-static: ≦10^9-11Ω/sq ; Working temperature:140℃ - 190℃ ; RA pass:55℃~60℃/720 hrs
Width: 5.4mm, 9.3mm, 13.3mm, 21.3mm, 25.5mm, 37.5mm, 49.5mm, 65.5mm, 81.5mm
What kind size of cover tape need go with difference width carrier tape like 8 mm, 12 mm, 16 mm, and 24 mm...?
1. Carrier Tape of 8 mm has to be used with Cover tape of 5.4mm.
2. Carrier Tape of 12 mm has to be used with Cover tape of 9.3mm.
3. Carrier Tape of 16 mm has to be used with Cover tape of 13.3mm.
4. Carrier Tape of 24 mm has to be used with Cover tape of 21.3mm.
5. Carrier Tape of 32 mm has to be used with Cover tape of 25.5mm.
6. Carrier Tape of 44 mm has to be used with Cover tape of 37.5mm.
7. Carrier Tape of 56 mm has to be used with Cover tape of 49.5mm.
8. Carrier Tape of 72 mm has to be used with Cover tape of 65.5mm.
9. Carrier Tape of 88 mm has to be used with Cover tape of 81.3mm.
What difference about SMT, SMD, DIP?
SMT（SMT: surface Mount Technology）
SMD（SMD: surface Mount Device）
DIP（Dual In-line Package）
About Peeling Strength (pulling force) from EIA Standard-D
4.11 in EIA Standard-D:
The cover tape for each style and material of carrier tape shall have a total peel strength of from 0.1 N to 1.0 N (10 grams to 100 grams calibrated scale reading) for 8 mm carrier tapes and 0.1N to 1.3 N (10 grams to 130 grams calibrated scale reading) for 12 mm to 56 mm wide carrier tapes and from 0.1N to 1.5 N (10 grams to 150 grams calibrated scale reading) for 72 mm and wider carrier tapes. Peel is defined as the separation of the full width of the cover tape from the carrier tape or the removal of the center portion of the cover tape from the carrier tape to enable component removal from the cavity. The direction of pull shall be opposite the direction of carrier tape travel such that the cover tape makes an angle of between 165 and 180 degrees with the top of the carrier tape. The cover tape, shall be pulled with a velocity of 300 mm±10 mm/minute, relative to the carrier tape, during peeling, which results in the cover/carrier tape seal being separated at a rate of 150 mm/minute.
How much Peeling Strength (pulling force) can fit you? From EIA Standard-D
1. 0.1 N to 1.0 N (10 grams to 100 grams calibrated scale reading) for 8 mm carrier tapes.
2. 0.1 N to 1.3 N (10 grams to 130 grams calibrated scale reading) for 12 mm to 56 mm wide carrier tapes
3. 0.1N to 1.5 N (10 grams to 150 grams calibrated scale reading) for 72 mm and wider carrier tapes.
The pulling strength of our Heat-Seal, PSA cover tape is 20~90 gram, 40~130 gram, but it still difference pulling strength from difference carrier tape. We have stable pulling strength improve the component jump at SMD.
Surface-mount technology
Surface-mount technology (SMT) is a method in which the electrical components are mounted directly onto the surface of a printed circuit board (PCB). An electrical component mounted in this manner is referred to as a surface-mount device (SMD). In industry, this approach has largely replaced the through-hole technology construction method of fitting components, in large part because SMT allows for increased manufacturing automation. Both technologies can be used on the same board, with the through-hole technology often used for components not suitable for surface mounting such as large transformers and heat-sinked power semiconductors.
An SMT component is usually smaller than its through-hole counterpart because it has either smaller leads or no leads at all. It may have short pins or leads of various styles, flat contacts, a matrix of solder balls (BGAs), or terminations on the body of the component.
For Surface-mount technology (SMT), cover tape is very important. If the peeling strength is not stable, the component will jump out at SMT line. If the anti-static is not stable, the component will be broke by electrical static discharge.
Force-One's cover tapes have good quality can avoid any issue like jumping, ESD, particle. We can increase the ratio of utilization at your SMT.
About Cover Tape for SMT SMD, How many kind of cover tape type
Cover tape still can call: tape and reel, tape reel, SMD package, semiconductor tape, reel to reel, SMD reels, reel to reel tape, tape and reel packaging, electric reel, tape & reel packaging, 2668 , 2698 , 2671A for semiconductor packaging, component packaging
Cover tape combines with carrier tape and use for packaging the semiconductor(IC) or Passive components seal electrical and electronic components, it has anti-static layers can anti-static(ESD) during packing, transport and storage. Both PSA and HAA cover tapes can be found in non-conductive and static-dissipative versions. Some cover tapes are termed anti-static which are usually perceived as being the same as static-dissipative cover tapes. Technically, anti-static refers to a material that does not generate a static charge when rubbed against a second material (triboelectric charging). Static dissipative refers to a material that can bleed off a charge through the mechanism which provides it’s surface resistivity.
When sealing an HAA cover tape, temperature refers to the indicated temperature of the sealing mechanism. Heat-Activated adhesives are dry to the touch at room temperature. The absence of any tackiness is the property that permits their ready handling under these conditions. Tackiness must be attained to get the adhesive to “stick” the cover tape to the carrier tape. To accomplish this, energy in the form of heat is used to “activate” the cover tape’s adhesive system. This activation is the process that raises the temperature of the adhesive until it achieves a level of tackiness which allows it to adhere to the carrier tape. But PSA cover tapes require different processing and handling than Heat-Activated cover tapes and are generally considered to be easier to seal than their Heat-Activated counterparts. The PSA adhesive is a synthetic adhesive formulated to remain tacky over a wide range of temperatures, including room temperature. Hence, PSA cover tapes require no heat to seal them to the carrier. To prevent components from sticking to the adhesive, a liner film is added to cover the adhesive in the center portion of the cover tape.
REFERENCES: FUNDAMENTALS OF PSA AND Heat-Activated COVER TAPE SEALING FOR COMPONENTS PACKAGED IN TAPE AND REEL
2668 , 2698 , 2671A
